DMX In

The DMX input port can receive DMX512 levels from another controller and use that information to trigger Memories.

You can select which Memory Page the DMX triggers and the starting Memory number. Slot #1 from the DMX will control the first memory and subsequent memories will be controlled by the following DMX slots.

NOTE

When DMX In is mapped to a Memory page and DMX is present at the In port, you cannot control the Memories manually. The DMX will always "win" and change whatever level you set.

You must set up the Aux port to either receive DMX or RS232.

Press the Wrench icon
Press Setup
Select Input/Output and arrow down to Aux Serial Port
Select "DMX Input" and press Apply .

You then need to specify what Memories you'd like to control and how.

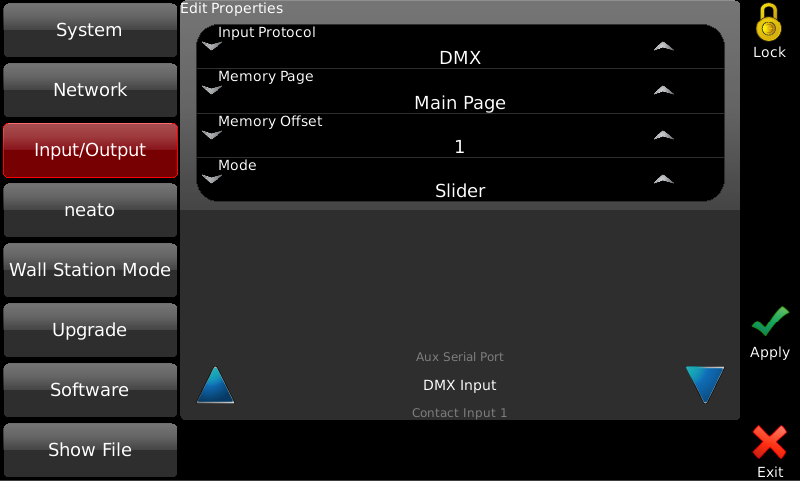

From the Input/Output screen in Setup, arrow down to "DMX Input"
Use the arrows to set the Input Protocol to DMX if you're using the Aux connector on the rear of the unit.
Use the arrows to select the Memory Page.
Use the arrows to select the first Memory (Memory Offset) in the selected Memory Page you want to control with the first slot of DMX.
Choose either Slider or Button.

Slider control will map the incoming DMX value to the level of the Memory
Button mode will hold the button down for any non-zero DMX level. It's best to keep the Memory Bump Mode "Momentary" when using this mode.

Press Apply .

NOTE

You can also receive eDMX from controllers using the Pathport Protocol, sACN E1.31 or Art-Net by changing the Input Protocol from DMX. In that case you must choose a Universe number as well from the edit box which will appear when the Input Protocol is not DMX.
